Hytera HP602 Two-Way Radio Deep Dive Overview

February 3, 2026

On this page

Core Features of the Hytera HP602 Two-Way Radio

Audio Quality: Features a large, forward-facing speaker and AI-based noise cancellation technology that can decrease unwanted background noises by up to 30dB. It also uses water-porting technology to drain water from the speaker cavity, ensuring audio clarity in wet conditions.
Ruggedness and Durability: The radio is fully compliant with IP67 standards for dust and water ingress (submersible in 1 meter of water for 30 minutes) and meets MIL-STD-810G standards for shock, vibration, and extreme temperatures.
Battery Life: A powerful and lightweight 2000mAh Lithium Polymer battery provides an extended life of up to 20 hours of operation (on a 5/5/90 duty cycle, GPS disabled).
Worker Safety: Includes several features to enhance user safety, such as a programmable emergency button, Lone Worker prompts, and a Man Down feature that automatically triggers an alert if the radio is inclined at a pre-set angle or motionless for a period of time.
Connectivity and Systems: Supports dual-mode operation (both analog and digital modes) to facilitate seamless migration from older systems. It also features built-in Bluetooth for audio and data connectivity to wireless accessories and, in specified models, GPS for real-time location tracking.
Security: Supports digital end-to-end encryption (ARC4 and AES algorithms) for secure voice and data transmissions, as well as radio authentication to prevent unauthorized system access.

Hytera HP602 Two-Way Radio, 4W, 1024C, Analog/DMR, IP67, MD, 1-Line Display, UHF(400-527MHz) - H08

1) Loud , Clear Audio for Noisy Environments

When communication is competing with machinery, crowds, or echo-filled hallways, you need a radio that can cut through the noise

Louder and Clearer Audio Hytera provides industry-leading audio quality through a large forward-facing speaker, and AI based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db. Acoustic feedback suppression prevents howling when multiple radios are in close proximity. New water-porting technology quickly drains water out of speaker cavity to maintain audio clarity. Thinner and Lighter An optimized mechanical design with advanced materials, and a lightweight lithium polymer battery delivers a compact radio that weighs less than 10 ounces.

2) Rugged Durability for Real Work Conditions

Higher Level of Ruggedness The HP6 Series is fully compliant with the IP68 and MIL-STD- 810 G standards. It is dustproof, water resistant, and can stand up to drop shock testing at 2 meters. The HP6 Series anti-magnetic speaker does not attract magnetic metal dust and shavings.

3) Full-Shift Power for All-Day Operations

Longer Battery Life The latest in lithium polymer battery technology is used to power the HP6 Series radios for excellent performance. The battery is light and small, achieving a shift life of 20 hours on high transmit power with a duty cycle of 5/5/90.

4) Safety features

Enhanced Worker Safety The HP6 Series feature programmable emergency buttons, emergency calling, and priority interrupt.
Lone Worker prompts the user to press a key or speak to indicate they are safe.
Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.
Hearing protection prevents the maximum volume when using audio earpieces.
The HP602 features a 0.91-inch OLED display that shows the channel, signal strength, power status, and power level.

5) Expanded features Hytera H Series Two-Way Radios

Å Enhanced GPS Location Tracking The HP682 and HP602 radios can report current location information to other radios, the dispatcher, or third-party applications in real time, enhancing the efficiency of visualized dispatch applications. GPS data can be transmitted during voice calls for immediate location targeting, and GPS data can be compressed to increase channel capacity and reduce hardware cost.
Higher Security The HP6 Series supports Digital End-to-End and Over-the-Air Encryption for voice and data transmitted on digital channels to prevent eavesdropping. Hardware encryption is implemented through a built-in encryption card. Software encryption uses the secure and reliable ARC4 and AES encryption algorithms. Radio authentication prevents unauthorized users from accessing the system. If a radio is lost or stolen, the system can Stun or Kill the radio to prevent unauthorized use.
Greater Calling Flexibility A variety of calling modes provides the flexibility to communicate with any or all users. The HP6 Series supports Individual Calls (radio to radio, radio to dispatcher), Group Calls (one radio to many, dispatcher to many), Unaddressed Group Calls (a single call to multiple groups), All Call (broadcast call to all radios, transmit only), and Telephone Calls (with connectivity to PSTN, PABX, or SIP networks).
Multi-System Operation The HP6 Series can be deployed in a wide variety of analog and digital radio networks, including Analog and Digital Conventional, MPT and XPT Trunking, DMR Tier II Trunking, IP Multi-Site Connect, and DMR Simulcast Systems. Extended Coverage and Connectivity The HP6 Series extends radio range through increased Tx power, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs. Two patented technologies and a voice buffer reduces packet loss during Rx handover for consistently clear calls and fewer dropped words. Bluetooth Built-in Bluetooth supports both audio and data, and enables connectivity to wireless accessories like earpieces and microphones.
DTMF Signaling DTMF is a system of analog tonal signals that enables routing telephone calls to radio networks. DMTF is also used to control physical devices such as irrigation systems, motorized gates and doors, and other devices. The HP6 radios can send DTMF signals manually (with HP682 keypad) or send up to 256 stored pre-programmed
Visual Overview of the Hytera HP Series features

Core Use Cases and Industries:

Hytera HP602 Industry Use Case Recommendations

Public Safety and Security: Ideal for security personnel due to its discreet design, one-line OLED display, and dedicated emergency button, allowing for fast, covert communication.
Construction and Industrial Fieldwork: Designed to withstand drops, dust, and rain (IP68, MIL-STD-810G). Its anti-magnetic speaker is suitable for environments with metal shavings, while high-power transmission ensures coverage across large sites.
Manufacturing and Warehousing: Facilitates efficient coordination, with long-lasting battery life (20-24 hours) for full shifts and clear audio in high-noise areas.
Logistics and Transportation: Supports GPS location tracking for real-time fleet management and dispatch, with enhanced range for connectivity over large areas.
Hospitality and Event Management: Suitable for staff coordination, offering Bluetooth for wireless accessories (earpieces) to keep communication discreet, and covering, for example, large hotel properties and casinos.

Key Operational Features:

Worker Safety: Includes Man Down
Clear Audio & Range: Delivers 25% better coverage than standard radios and filters out background noise for,, in some cases, enhanced communication in loud environments.
Versatile Calling: Supports individual, group, and all-calls for flexible communication, along with support for analog and digital modes.

Range Expectations:

Real-world coverage varies significantly based on:

Building materials (concrete, steel, glass), floor plan, and interference
Whether you’re using repeaters
Antenna placement and how radios are carried/used

FCC Licensing

This is a business-band UHF radio. Most business use cases require appropriate FCC licensing and correct frequency programming. If you’re replacing an existing fleet, the simplest path is typically matching your current licensed frequencies. If you’re starting fresh, plan for licensing and legal frequency coordination as part of deployment.

FCC License

How to Get Started

Identify your environment: warehouse, hotel, jobsite, campus, or mixed use
Confirm compatibility needs: matching existing radios/frequencies vs. new deployment
Plan channels and zones: organize by department and workflow
Decide on accessories: spares, chargers, headsets, speaker mics, cloning cable
Handle licensing and programming: set radios up correctly before rollout

Hytera HP602 Two-Way Radio, 4W, 1024C, Analog/DMR, IP67, MD, 1-Line Display, UHF(400-527MHz) - H08

On this page

Core Features of the
Core Use Cases and Industries:
Key Operational Features:
Range Expectations:
FCC Licensing
How to Get Started

Hytera HP602 Two-Way Radio: Deep Dive Overview

The Hytera HP602 is a professional DMR two-way radio built for all-day use in demanding environments. IP67-rated, 20-hour battery, AI noise cancellation, and Bluetooth — here’s everything you need to know before buying.

Hytera HP602 Two-Way Radio: Deep Dive Overview

The Hytera HP602 is a professional-grade DMR two-way radio designed for teams that need reliable, all-day communication in demanding work environments. As part of Hytera’s HP6 H-Series, it brings together digital clarity, rugged construction, and a suite of safety features in a compact body that weighs less than 10 ounces — making it one of the more capable business radios at its price point.

This deep dive covers the HP602’s full feature set, real-world range expectations, which industries it’s built for, how it compares to the Motorola R7, and what you need to know before

Core Features of the Hytera HP602

1. Audio Quality

The HP602 features a large, forward-facing speaker with AI-based noise cancellation that uses deep learning to extract voice from background noise in real time, reducing unwanted ambient sound by up to 30dB. This is particularly valuable in environments where machinery, crowds, or reverberant spaces compete with radio audio.

The HP602 also uses Hytera’s water-porting technology, which actively drains water from the speaker cavity after submersion or exposure, maintaining audio clarity where competitor radios may muffle or distort immediately after getting wet.

2. Ruggedness and Durability

The HP602 is rated IP67 for dust and water ingress — meaning it is fully dustproof and can be submerged in up to 1 meter of water for 30 minutes. It meets MIL-STD-810G standards for shock, vibration, and extreme temperature performance. Per Hytera’s published specifications, the radio is tested to withstand drops from up to 2 meters.

The HP602’s speaker uses an anti-magnetic design that resists attracting metal dust and shavings — a practical advantage in machining or metalwork environments where other radios can accumulate debris around the speaker grille.

3. Battery Life

The HP602 uses a 2,000mAh lightweight Lithium Polymer battery providing up to 20 hours of operation under a standard 5/5/90 duty cycle (5% transmitting, 5% receiving, 90% standby) at maximum transmit power with GPS disabled. In light-use environments — hospitality, retail, event staffing — real-world runtime will often exceed 20 hours. In heavy-use deployments with frequent transmissions, plan for 12–16 hours of active use.

4. Worker Safety Features

The HP602 includes several features specifically designed for workforce safety:

Lone Worker — Periodically prompts the user to confirm they are safe by pressing a key or speaking. If no response is given, the radio automatically enters emergency mode.

Man Down — Detects if the radio is inclined at a pre-set angle or remains motionless for a configurable period of time, then triggers an automatic emergency alert. Critical for solo workers in hazardous environments.

Emergency Button — A dedicated programmable emergency button triggers emergency calling immediately.

Hearing Protection — Prevents volume from exceeding safe levels when audio earpieces are in use, important for compliance-sensitive roles.

5. Connectivity

The HP602 supports dual-mode operation, running on both legacy analog and digital DMR networks. This makes it a practical choice for teams migrating away from older analog infrastructure — individual radios can be deployed on a mixed network while the fleet transitions over time.

Built-in Bluetooth enables audio and data connectivity to wireless accessories including earpieces and remote speaker microphones. GPS is available on the HP602 for real-time location reporting to dispatchers or third-party applications, with data compression to reduce channel load during voice calls.

6. Security

The HP602 supports digital end-to-end encryption using both ARC4 and AES algorithms, covering voice and data transmitted on digital channels. Over-the-Air Encryption (OTAE) is also supported. Radio authentication prevents unauthorized devices from accessing your system, and a radio can be remotely Stunned or Killed if lost or stolen.

Core Use Cases and Industries

Construction & Industrial

IP67 dust and weather protection, anti-magnetic speaker for metal-dust environments, Man Down safety alerting, and high-power transmission for large site coverage. The 1,024-channel capacity supports multi-zone coordination across large projects.

Hospitality & Events

Compact and lightweight form factor keeps the radio unobtrusive for guest-facing staff. Bluetooth support enables discreet wireless earpieces. The 1-line OLED display provides quick channel confirmation without demanding attention.

Manufacturing & Warehousing

AI noise cancellation cuts through machinery noise. The 20-hour battery covers a full shift without mid-day charging. Lone Worker prompts add a safety layer for employees working in isolated areas of large facilities.

Security & Public Safety

Dedicated emergency button and Man Down alerting are critical for lone security personnel. AES encryption ensures communications remain private. GPS location tracking supports dispatch and incident response coordination.

Logistics & Transportation

GPS reporting enables real-time vehicle and personnel tracking for dispatch management. Multi-site DMR support ensures connectivity across distributed operations. The 25% range improvement over standard DMR radios extends coverage on large yards or campuses.

Education & Campus

Rugged enough for outdoor campus environments, straightforward enough for non-technical staff. Emergency alerting supports school safety protocols. Long battery life covers full school-day shifts without recharging.

When to Choose the HP602

The HP602 is the stronger choice when budget is a key constraint — at roughly 40–50% lower cost per unit, fleet-wide savings are significant. It’s also better suited to hospitality, retail, or light-industrial roles where the compact form factor and Bluetooth accessories matter more than maximum waterproofing or a color display. If you’re already operating a Hytera infrastructure (XPT trunking, IP Multi-Site Connect), the HP602 integrates natively.

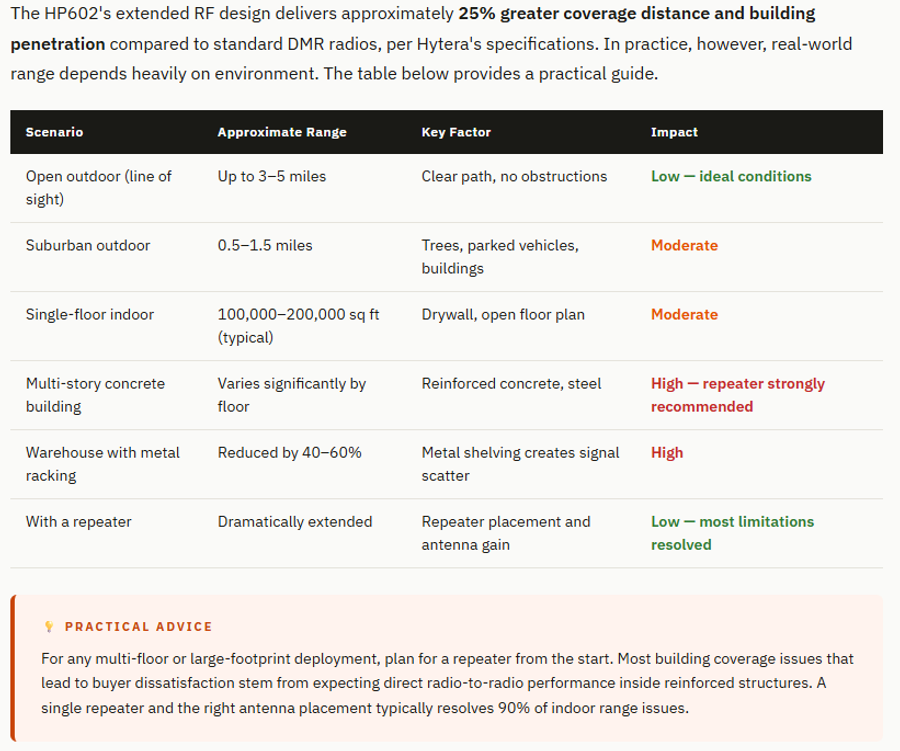

Range Expectations

The HP602’s extended RF design delivers approximately 25% greater coverage distance and building penetration compared to standard DMR radios, per Hytera’s specifications. In practice, real-world range depends heavily on environment. The table below provides a practical guide.

Key Operational Features

Calling Modes

The HP602 supports a full range of call types to fit how organizations actually communicate:

Individual Call — radio-to-radio or radio-to-dispatcher, for direct private communication

Group Call — one radio to many, or dispatcher to a defined group

Unaddressed Group Call — a single transmission to multiple groups simultaneously

All Call — broadcast to all radios on the system (transmit only)

Telephone Call — requires PSTN, PABX, or SIP network connectivity

Multi-System Operation

The HP602 can be deployed across Analog Conventional, Digital Conventional, MPT and XPT Trunking, DMR Tier II Trunking, IP Multi-Site Connect, and DMR Simulcast Systems — giving it broad compatibility with existing infrastructure and reducing switching costs when upgrading from older analog fleets.

DTMF Signaling

DTMF (Dual-Tone Multi-Frequency) signaling allows the HP602 to interact with telephone networks and control physical devices such as motorized gates, doors, and irrigation systems. The HP602 can send DTMF signals manually or transmit up to 256 stored, pre-programmed DTMF sequences — useful in facilities management, access control, and industrial automation scenarios.

Frequently Asked Questions

Does the Hytera HP602 require an FCC license?

Yes. The HP602 is a business-band UHF radio and most commercial use cases require an FCC Part 90 license. You will need to obtain licensed frequencies and have the radio programmed accordingly. If you are expanding an existing licensed fleet, the simplest path is matching your current frequencies. New deployments should plan for licensing and frequency coordination as part of the rollout.

Can the HP602 communicate with older analog radios?

Yes. The HP602 supports dual-mode operation, running on both analog and digital (DMR) channels. Channels can be programmed individually as analog or digital, allowing the HP602 to work alongside legacy radios during a transition period.

What is the actual battery life of the HP602?

Hytera rates the HP602 at up to 20 hours under a 5/5/90 duty cycle (5% transmitting, 5% receiving, 90% standby) at maximum transmit power with GPS disabled. In lighter use environments like hospitality or retail, real-world life often exceeds this. In heavy-use deployments, plan for 12–16 hours of active use per charge cycle.

Is the HP602 waterproof?

The HP602 is rated IP67, meaning it is fully dustproof and can be submerged in up to 1 meter of water for 30 minutes. It is suitable for rain, splashes, and brief submersion. For applications requiring prolonged submersion deeper than 1 meter or longer than 30 minutes, consider a radio rated IP68.

How does the HP602 compare to the Motorola R7?

The Motorola R7 outperforms the HP602 on IP rating, TX power, battery capacity, display quality, and Wi-Fi connectivity. The HP602 wins on price (roughly 40–50% less per unit), weight, and includes 1,024 channels standard. Both support the same core DMR features, safety functions, and calling modes. See the full comparison table above for a complete spec-by-spec breakdown.

How to Get Started

Before purchasing, work through these five steps to ensure a smooth deployment:

Identify your environment — warehouse, hotel, multi-floor building, outdoor campus, or mixed. Environment drives decisions about repeaters, channel planning, and accessories.

Confirm compatibility needs — if you are expanding an existing fleet, match frequency bands and protocol (analog vs DMR). If starting fresh, plan for this from the start.

Plan channels and zones — organize by department and workflow. The HP602’s 1,024 channels give plenty of room for even complex organizational structures.

Decide on accessories — earpieces, speaker mics, multi-unit chargers, programming cables, and spare batteries. Calculate per-unit accessory cost as part of your total deployment budget.

Handle licensing and programming — FCC licensing and correct frequency programming must be completed before radios are put into service. Do not skip this step.
