Kenwood NX-P1300AUK Two-Way Radio Deep Dive Overview
March 10, 2026
The Kenwood NX-P1300AUK is a durable, high-power UHF two-way radio built for demanding on-site environments. It’s designed to deliver loud, clear audio in noisy spaces, hold up to daily wear, and scale cleanly across teams and departments—making it a strong fit for job sites, warehouses, hospitality teams, and large facilities.

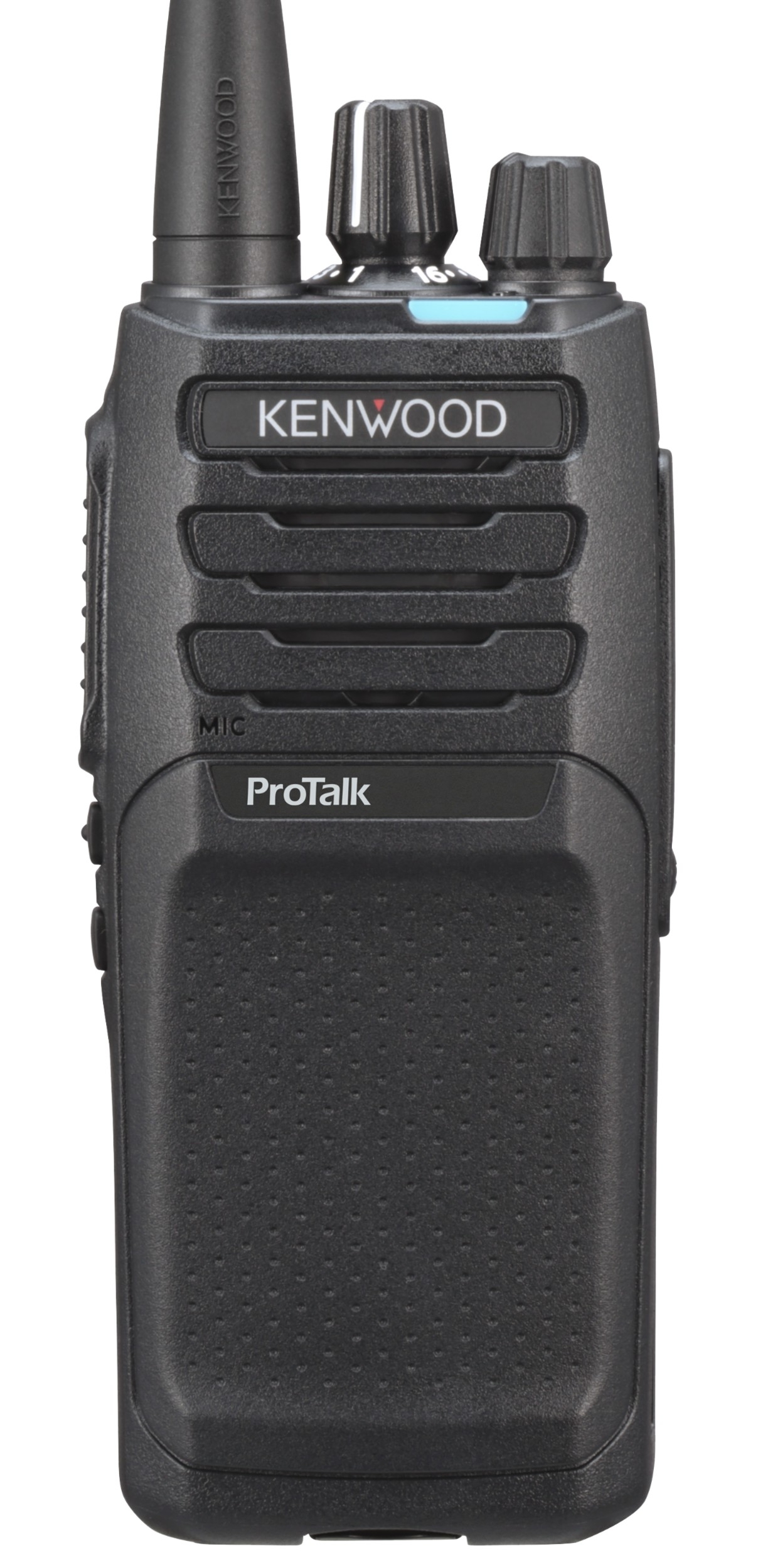

Kenwood Protalk NX-P1300AUK Two-Way Radio - 5W, 64C, Analog, "LOUD" 1000mW Speaker, UHF(450-520MHz) - K01
Quick Specs: Freq: 451–470 MHz UHF | Power: 5W | Channels: 64 | Battery: Up to 11.5 hrs. | Rating: IP54/55 · MIL-STD-810 | Warranty: 3 Years
Why Teams Choose the NX-P1300AUK ?
1) Loud, Clear Audio for Noisy Environments
When communication is competing with machinery, crowds, or echo-filled hallways, you need a radio that can cut through the noise.
- 1W (1,000 mW) speaker output with BTL audio amplification for strong, intelligible sound
- Reduces miscommunication, improves safety, and speeds response time
- Clear voice reproduction for both 1-to-1 and group communication across rooms, floors, and outdoor areas
- Frequency range - 451–470 MHz
- Dimensions 2.13" x 4.84" x 1.32" and weighs 9.9 oz with battery
- 3 year warranty
2) Rugged Durability for Real Work Conditions
This radio is built to handle bumps, dust, and weather without turning into a maintenance headache.
- MIL-STD 810 (C through G) durability compliance
- IP54/55 dust and water resistance to support operation in dirty or wet environments
- Designed for long-term use, helping reduce downtime and replacement costs
3) Strong UHF Performance for Building and Campus Use
UHF is a common choice for indoor operations and mixed indoor/outdoor sites.
- Reliable coverage for large facilities, multi-floor environments, and busy work areas
- Range varies by building materials and site layout, but the platform is frequently used in environments where clear, consistent in-building comms matter
- Coverage range is 444,000 sq ft / 39 floors
- Requires
FCC licensing
4) Easy to Organize and Scale Across Teams
As your team grows, channel and zone organization becomes the difference between “works great” and “constant confusion.”
- 64 channels across 4 zones for clean separation of departments or workgroups or 16 channels per zone, 4 zones.
- Helpful for separating traffic like maintenance/receiving / security/managers
- Makes training easier and day-to-day communication more predictable
5) Full-Shift Power for All-Day Operations
Built to support long shifts without constant battery anxiety.
- High-capacity Li-ion battery options commonly deliver
11.5 hours of battery life with the KNB-45L of runtime (use varies by usage pattern and configuration) - Reduces charging interruptions and keeps teams productive
Best-Fit Industries and Use Cases
Construction and Trades
- Rugged build for dust, vibration, impact, and weather
- Clear audio improves coordination across crews and supervisors
Warehousing and Logistics
- UHF performs well in large buildings and multi-area operations
- Zones/channels keep workflow communication clean and organized
Manufacturing
- High-powered audio helps overcome equipment noise
- Upgrade path supports future communications planning without a full hardware swap
Hospitality and Facility Teams
- Clear communication across floors, departments, and event staff
- All-day power reduces charging interruptions during busy service windows
Security and Events
- Durable design supports high-movement, high-stakes use
- Privacy features help limit operational chatter exposure
Farming and Ranching
- Ruggedness and outdoor suitability for property coordination
- Useful for teams operating across multiple areas and structures
Retail
- Clean staff coordination on the floor and back-of-house
- Multiple channels reduce cross-talk between roles
Rental Fleets
- Cloning support helps deploy and maintain matched fleets quickly
- Standardized configuration makes turnover and training easier
Most Common Questions - FAQ - Kenwood NX-P1300AUK
What frequency does the Kenwood NX-P1300AUK operate on?
The NX-P1300AUK operates on UHF frequencies between 451–470 MHz using analog FM transmission.
UHF frequencies in this band are part of the FCC-regulated business radio spectrum. UHF is ideal for indoor and urban environments because the shorter wavelengths penetrate walls and obstacles more effectively than VHF. The radio is pre-tuned to this range; specific channel frequencies within 451–470 MHz are assigned by your FCC license.
Does the NX-P1300AUK require an FCC license?
Yes. it operates on licensed UHF business band frequencies and requires an FCC Part 90 license (FCC Form 601) before it is legally placed into service.
Business band radios in the 451–470 MHz range are not license-free consumer devices. You must apply through the FCC Universal Licensing System (ULS) at fcc.gov. The license is granted to your business or organization, not to the individual radio. Before submitting Form 601, you must select the specific frequencies your operations will use; available frequencies are listed in the owner's manual. Licenses are typically valid for 10 years and are renewable.
How long does the battery last on the NX-P1300AUK ?
The included KNB-45L 2,000 mAh Li-ion battery delivers up to 11.5 hours of battery life under typical use conditions.
Battery life is measured at a standard 5-5-90 duty cycle (5% transmit, 5% receive, 90% standby). Heavy transmit use will shorten runtime. The radio has a built-in battery saver with High, Medium, and Low settings to extend standby time. The KSC-35 rapid-rate charger is included and returns the battery to full charge faster than a standard charger.
What is the range of the NX-P1300AUK ?
Kenwood rates the NX-P1300AUK for indoor coverage of approximately 370,000–444,000 sq ft or up to 33–39 floors. Open-area outdoor range can be several miles under ideal conditions.
Quoted square footage and floor counts are best-case estimates tested in large commercial buildings. Real-world range is affected by building materials, interference, terrain, and vegetation. The radio is repeater-capable, meaning you can extend range significantly by routing communication through a fixed repeater station.
How many channels does the NX-P1300AUK support?
The NX-P1300AUK has 64 total channels organized across 4 zones with 16 channels per zone.
The zone/channel structure lets large organizations segment communication by department, floor, building, or work group — for example: Zone A = Warehouse, Zone B = Security, Zone C = Management, Zone D = Logistics. Channels are fully programmable via PC using an optional programming cable and Kenwood software.
What is the power output of the NX-P1300AUK ?
The NX-P1300AUK has a maximum transmit power output of 5 watts.
5 watts is the maximum output permitted for portable radios in the FCC Part 90 business band. Some retailers list this radio at 4W — the correct specification confirmed by Kenwood and the FCC ID filing is 5W.
Is the NX-P1300AUK waterproof or water-resistant?
The NX-P1300AUK is rated IP54/55 for dust and water resistance and meets MIL-STD-810 C/D/E/F/G environmental standards. It is splash- and rain-resistant, not submersible.
IP54 means the radio is protected against dust ingress and water splashed from any direction. IP55 adds protection against low-pressure water jets. MIL-STD-810 testing covers shock, vibration, humidity, altitude, and temperature extremes. It is suitable for outdoor job sites, loading docks, and warehouses — but should not be submerged.
Can the NX-P1300AUK be upgraded to digital?
Yes. The NX-P1300AUK ships as analog-only but can be software-upgraded to NXDN or DMR digital operation by purchasing an optional license key — no new hardware required.
This design lets you buy analog radios today and unlock digital capability as your budget or needs change. Digital mode offers clearer audio at the edge of coverage, improved battery life, and support for features like encryption and text messaging. Both NXDN (Kenwood's proprietary standard) and DMR (open industry standard) paths are available.
How do you program the NX-P1300AUK ?

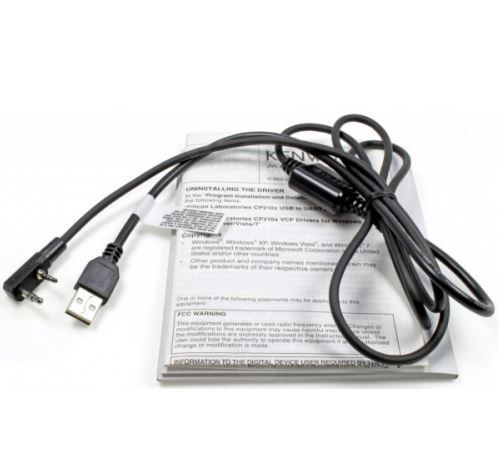

The NX-P1300AUK can be programmed from the front panel for basic settings or via PC software using an optional KPG-36 programming cable for full channel and feature configuration.
Front-panel programmable settings include Voice Announcement, Scan, Button Lock, Call Alert, Time-Out Timer, and Super Lock. PC programming unlocks the full channel lineup, repeater settings, 7-color LED assignments, CTCSS/DCS tone codes, and VOX sensitivity. Radios can also be cloned wirelessly from a master unit to additional units using an optional cloning cable.
What accessories are included with the NX-P1300AUK ?
The radio ships with a KNB-45L Li-ion battery , KSC-35 rapid-rate charger , KRA-27M antenna , KBH-10 belt clip , and owner's manual.
The KNB-45L battery is interchangeable with Kenwood's TK-2400/3400 legacy series. The radio uses Kenwood's standard 2-pin (K1/KA) accessory connector, making it compatible with a wide range of third-party and Kenwood earpieces, speaker-mics, and headsets.
What warranty does the NX-P1300AUK come with?
Kenwood covers the NX-P1300AUK with a 3-year manufacturer warranty against defects in materials and workmanship.
The warranty is provided by Kenwood Communications Corporation and covers labor and materials for covered defects. It does not cover damage from accidents, misuse, unauthorized repair, or modifications, and applies to the original end-user purchaser only.
Should I buy the analog NX-P1300AUK now or wait for the digital version?
Buy the analog NX-P1300AUK now if your current fleet is analog — it will communicate with your existing radios, and you can unlock digital later with a software license key when you're ready.
If your organization is already on digital systems (DMR or NXDN), consider purchasing the pre-enabled digital variant or the upgrade key at the time of order. Mixed analog/digital environments are supported once the upgrade is applied to some units.
What radios is the NX-P1300AUK compatible with?
The NX-P1300AUK is compatible with any UHF analog radio operating in the 451–470 MHz range on a matching frequency and tone code.
It replaces the Kenwood TK-3402 and shares battery and accessory compatibility with the TK-2400/3400 series. Motorola, Icom, Vertex Standard, and other UHF business radios in the same frequency range can communicate with the NX-P1300AUK when programmed to matching channel parameters — this is a universal protocol, not brand-specific.
What are the dimensions and weight of the NX-P1300AUK ?
The NX-P1300AUK measures 4.84" H × 2.13" W × 1.32" D and weighs 9.88 oz (280g) with battery installed.
Without the battery the radio weighs approximately 5.8 oz. The compact form factor is designed for all-day carry in demanding environments.
Does the NX-P1300AUK support VOX / hands-free operation?
Yes. The NX-P1300AUK supports both full VOX (voice-activated transmit) and Semi-VOX modes, configurable via PC programming.
VOX allows hands-free operation when paired with a compatible headset — the radio automatically transmits when it detects your voice without pressing PTT. VOX sensitivity is adjustable to prevent false activations in noisy environments.
Full Specifications NX-P1300AUK
Parameter
Value
Model
Kenwood NX-P1300AUK (ProTalk NX-P1000 Series)
Frequency Range
451–470 MHz (UHF)
Channel Mode
Analog FM (NXDN / DMR digital via upgrade)
Power Output
5W (max)
Channels
64 total — 4 zones × 16 channels
Battery (included)
KNB-45L, 2,000 mAh Li-ion
Battery Life
Up to 11.5 hours (5-5-90 duty cycle)
Indoor Coverage
370,000–444,000 sq ft / 33–39 floors
Water/Dust Rating
IP54/55
Military Standard
MIL-STD-810 C/D/E/F/G
Dimensions (H×W×D)
4.84" × 2.13" × 1.32" (with battery)
Weight
9.88 oz / 280g (with battery)
Connector Type
Kenwood 2-pin K1/KA
Programmable Buttons
2
LED Indicator
7-color status LED
VOX
Yes (VOX + Semi-VOX)
Scrambler
16-code voice inversion
Lone Worker / Emergency
Yes
Repeater Capable
Yes
Cloning
Yes (optional cable required)
FCC License Required
Yes — FCC Part 90 (Form 601)
Replaces Model
Kenwood TK-3402
Included Accessories
KNB-45L battery, KSC-35 charger, KRA-27M antenna, KBH-10 belt clip
Manufacturer Warranty
3 years (Kenwood)
FCC Licensing
This is a business-band UHF radio. Most business use cases require appropriate FCC licensing and correct frequency programming. If you’re replacing an existing fleet, the simplest path is typically matching your current licensed frequencies. If you’re starting fresh, plan for licensing and legal frequency coordination as part of deployment.
FCC License
How to Get Started - contact us for help
- Identify your environment: warehouse, hotel, jobsite, campus, or mixed use
- Confirm compatibility needs: matching existing radios/frequencies vs. new deployment
- Plan channels and zones: organize by department and workflow
- Decide on accessories: spares, chargers, headsets, speaker mics, cloning cable
- Handle licensing and programming: set radios up correctly before rollout
Kenwood Protalk NX-P1300AUK Two-Way Radio - 5W, 64C, Analog, "LOUD" 1000mW Speaker, UHF(450-520MHz) - K01
This article was updated on Feb 25, 2026 by www.twowayradio.com, Ion, Inc.
